`Xlsxrb`

A Ruby library for reading and writing XLSX files with streaming support.

Motivation

The Ruby ecosystem already has great XLSX libraries. Each is well-designed for its purpose:

Library	Read	Write	Model	Write String Storage	Rich Formatting
roo	✅	❌	Streaming	N/A (Read-only)	⚠️ (Formulas, Basic styles)
creek	✅	❌	Streaming	N/A (Read-only)	❌ (Raw cell values)
xsv	✅	❌	Streaming	N/A (Read-only)	❌ (Fast plain text)
caxlsx / axlsx	❌	✅	In-Memory	Inline (opt: SST)	✅ (Charts, Styles)
xlsxtream	❌	✅	Streaming	Inline (opt: SST)	❌ (Plain data only)
fast_excel	❌	✅	Streaming (C Ext)	SST (opt: Inline)	⚠️ (Basic styles)
rubyXL	✅	✅	In-Memory	Inline / Direct	✅ (DOM editing)
xlsxrb	✅	✅	Streaming / In-Memory	SST	✅ (Full Features)

Each of these libraries makes deliberate tradeoffs, and they do so thoughtfully: * Memory & Execution Model (Streaming vs In-Memory): Streaming libraries write or read rows sequentially on-the-fly to maintain a constant, low-memory footprint regardless of row count. In-memory libraries build complete document object trees, offering flexible random access and cell updates at the cost of high RAM usage on large sheets. * String Storage Architecture (SST vs Inline Strings): * SST (Shared String Table): De-duplicates strings into a central dictionary (xl/sharedStrings.xml), referencing them by numeric IDs in cell entries (<c t="s"><v>0</v></c>). This is standard Microsoft Excel behavior, producing significantly smaller raw XML documents (50–100% smaller) and reducing Excel’s memory footprint when opening spreadsheets. * Inline Strings: Writes text directly into cell payloads (<c t="inlineStr"><is><t>...</t></is></c>). Bypassing the dictionary enables blazing-fast raw throughput for simple data exports, but inflates uncompressed XML size and limits advanced formatting (e.g. styling, cell merges, charts).

Traditionally, attempting to build a “complete package” that offers both reading and writing, rich features, high performance, strict compatibility, and comprehensive documentation presents an inherent open-source challenge: the cumulative maintenance overhead often exceeds the capacity of individual human maintainers.

xlsxrb is born from a different premise. We believe that Advanced Agentic AI (AI Coders) can help manage this maintenance demand. By utilizing AI agents to automate rigorous E2E testing, visual regression testing, specification compliance checks, and documentation updates, we can reconcile these competing engineering requirements. This allows us to build and continuously maintain a feature-rich, high-performance, and deeply compatible “all-in-one” XLSX library that remains sustainable for the long run.

Design Principles

Minimal Dependencies (Zero Core Logic Dependencies): This library avoids heavy third-party XLSX/XML/ZIP gems, building all core parsing and writing features purely on the Ruby standard library and bundled gems (zlib, rexml, etc.). The only runtime dependency is opentelemetry-api, which provides zero-overhead observability. If you do not configure an OpenTelemetry SDK in your application, it acts as a lightweight no-op, keeping the runtime footprint extremely small.
Streaming Support: Both reading and writing are designed to handle large files efficiently by streaming data, keeping memory usage low and predictable.
Memory-Efficient XML Parsing: For reading operations, the library uses a custom byte-level streaming parser for worksheet rows (with targeted SAX parsing where appropriate) instead of DOM-based parsing, so entire XML documents are never loaded into memory. This enables true streaming capability for large spreadsheets.
Strict Microsoft Excel & OpenXML Interoperability: It is designed to closely follow the Microsoft Office implementation of the ISO 29500 standard. We ensure absolute bidirectional compatibility (both reading and writing) with Microsoft Excel by continuously validating files against the official Microsoft Open XML SDK.
AI-Agent Assisted Maintenance (Managing the Engineering Tradeoff): Building a library that is specification-compliant, rich in features, highly compatible, well-documented, and extremely fast typically presents a substantial maintenance challenge. xlsxrb addresses this inherent constraint by leveraging Advanced Agentic AI (AI Coders) to automate testing, feature expansion, and compatibility verification. This AI-assisted development process supports the project’s long-term sustainability and high software quality.
Modern Ruby 4.0+: Built for the future with Ruby 4.0 or higher.

Installation

bundle add xlsxrb

Or without Bundler:

gem install xlsxrb

On Ruby 4+, some components used by xlsxrb and its test suite are shipped as bundled gems rather than built-in default libraries. When using Bundler, those bundled gems are resolved and installed in the usual way.

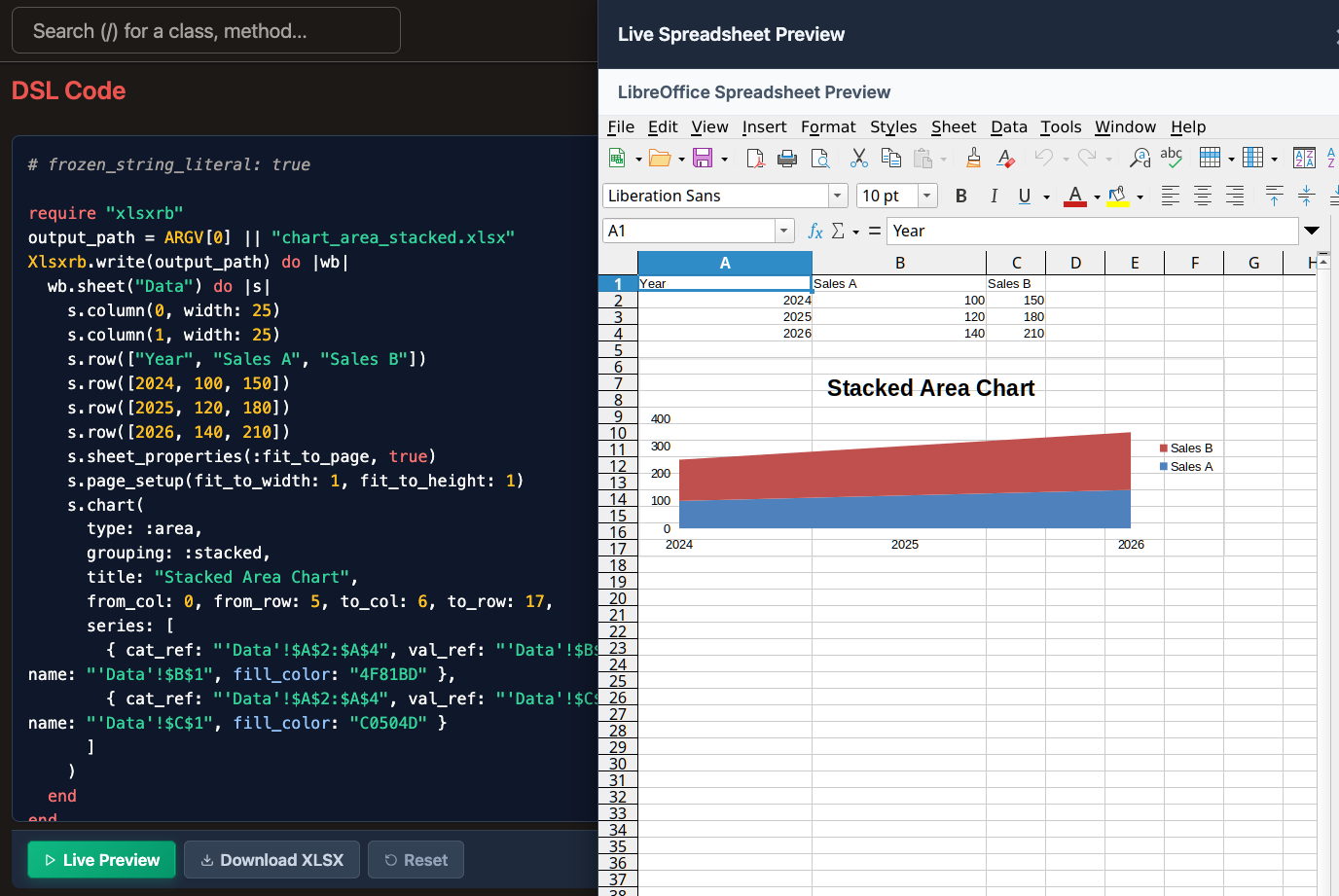

Interactive Playground (WebAssembly)

You can try xlsxrb directly in your browser without installing anything!

👉 Try the Live Demo / Interactive Playground

We have integrated an interactive WebAssembly-powered playground into our RDoc documentation. You can edit the code examples, run them in the browser sandbox, and download the generated .xlsx spreadsheets immediately.

To launch the playground locally: 1. Generate the WebAssembly bundle and interactive RDoc: bash bundle exec rake doc 2. Start the local preview server: bash bundle exec rake doc:preview 3. Open http://localhost:8000 in your browser, hover over any code block, and click the “Live Preview” or “Download XLSX” buttons!

Usage

xlsxrb supports both low-memory Streaming (recommended for large files) and full In-Memory document manipulation (for random-access cell modifications or updating existing sheets).

For visual demonstrations of various features, check the Visual Examples Gallery.

Quick Start: Streaming (Recommended)

Streaming Write

Generate large files efficiently by writing data directly to the file stream:

require "xlsxrb"

Xlsxrb.generate("large_output.xlsx") do |stream_writer|
  stream_writer.sheet("Sales Data") do |sheet|
    sheet.row(["Date", "Amount", "Status"])
    sheet.row([Date.today, 100, true])
    sheet.column(0, width: 15.5)
  end
end

Streaming Read

Read rows one at a time without loading the entire file into memory:

require "xlsxrb"

Xlsxrb.foreach("large_file.xlsx") do |sheet|
  sheet.each_row do |row|
    puts "Row #{row.index}: #{row.cells.map(&:value).join(', ')}"
  end
end

In-Memory Building & Modifying

xlsxrb provides a powerful, immutable-by-default API for modifying existing Excel files or building templates in-memory.

Modifying an Existing File

You can update specific cells or sheets using the functional Xlsxrb.modify API, which yields the parsed Elements::Workbook.

require "xlsxrb"

# Create a template.xlsx for this example
Xlsxrb.build { |builder| builder.sheet("Invoice") }.write("template.xlsx")

Xlsxrb.modify("template.xlsx", "output.xlsx") do |workbook|
  workbook.update_sheet("Invoice") do |sheet|
    # Update specific cells (returns updated sheet)
    sheet = sheet.update_cell("C4", value: "INV-10042")
    sheet = sheet.update_cell("C5", value: Date.today)

    # Or append new rows
    sheet.with(rows: sheet.rows + [
      Xlsxrb::Elements::Row.new(index: sheet.rows.size, cells: [])
    ])
  end
end

Hash & Range Styling (Syntactic Sugar)

You can directly apply inline styles or use Ranges for multiple columns without boilerplate:

Xlsxrb.build do |builder|
  # Use [] accessor for sheets
  builder["Report"].row(
    ["ID", "Name", "Score", "Rank"],
    # Apply 'header' style to first two columns, and bold inline style to the third
    styles: { 0..1 => "header", 2 => { font: { bold: true, color: "red" } } }
  )

  # Set multiple column widths at once using Ranges
  builder["Report"].column("A".."D", width: 15.0)
end

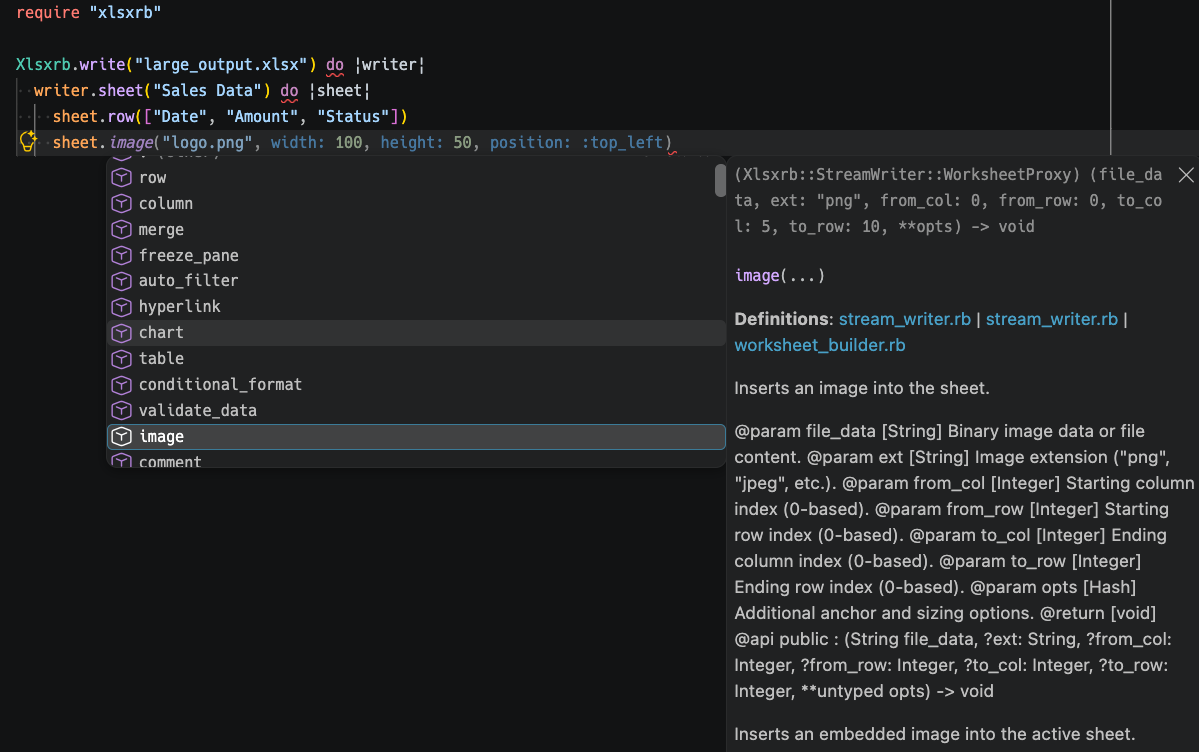

IDE Autocompletion & Ruby LSP Support

xlsxrb bundles a native Ruby LSP Add-on (RubyLsp::Xlsxrb::Addon) and full RBS signatures, enabling zero-configuration method autocompletion and rich Markdown documentation in VS Code and other LSP-enabled editors.

Whether you use standard descriptive block variable names (|stream_writer|, |sheet|, |workbook|) or short names (|wb|, |s|), your editor will automatically provide complete method suggestions and parameter hints:

Xlsxrb.generate("output.xlsx") do |stream_writer| # or |wb|
  stream_writer.sheet("Data") do |sheet|           # or |s|
    sheet.row(["Product", "Price"], styles: :bold)
    sheet.auto_filter("A1:B100")
  end
end

Feature Support & ECMA-376 Compliance

xlsxrb is designed for full interoperability and strict compliance with the ECMA-376 (Office Open XML) Transitional specification. It supports nearly all major spreadsheet features required for business reports:

Cells & Layout: Formulas, Hyperlinks, Merge Cells, Freeze & Split Panes, Page Setup (margins, headers/footers, scaling, gridlines).
Data & Controls: Auto Filters, Data Validations (dropdowns, range limits), Sheet Protection.
Formatting & Styling: Rich Text, Cell Tables, Conditional Formatting (color scales, data bars, icon sets).
Graphics & Charts: Embedded Images, Shapes & Drawings, Sparklines, Charts (Line, Bar, Pie, Area, Radar, Scatter).
Workbook Level: Defined Names, Print Areas, Workbook Protection, and Document Metadata (core, app, custom properties).

For detailed specification references and policies, see SPEC_SOURCES.md.

Benchmarks

The following benchmarks measure the time, peak memory, and GC count required to process a 1,000,000 cells (100,000 rows × 10 columns) spreadsheet across popular Ruby Excel libraries. Each test is executed across 3 independent runs in isolated subprocesses; median values are reported along with the mean execution time.

Write Performance (1,000,000 cells)

Library	Model	Write String Storage	Time (Median)	Time (Mean)	Peak Memory	GC Count
xlsxtream 3.1.0	Streaming	Inline String	1.23 s	1.25 s	18.1 MB	1061.0
xlsxrb (Streaming)	Streaming	SST (Shared)	1.62 s	1.62 s	94.5 MB	39.0
fast_excel 0.5.0 ©	Streaming	SST (Shared)	2.03 s	2.03 s	147.9 MB	263.0
xlsxrb (In-Memory)	In-Memory	SST (Shared)	4.06 s	4.06 s	280.3 MB	32.0
caxlsx 4.5.0	In-Memory	Inline String	5.36 s	5.35 s	188.7 MB	23.0
rubyXL 3.4.38	In-Memory	Inline String	38.02 s	38.03 s	2166.0 MB	104.0

Note: All libraries are evaluated in their default, out-of-the-box configuration. Under the same Microsoft Excel-standard Shared String Table (SST) architecture, Pure Ruby xlsxrb (Streaming: 1.62s, In-Memory: 4.06s) writes 1,000,000 cells faster than the C-extension fast_excel (2.03s) and in-memory gems like caxlsx (5.36s).

Read Performance (1,000,000 cells)

Library	Model	Time (Median)	Time (Mean)	Peak Memory	GC Count
xlsxrb (Streaming)	Streaming	3.38 s	3.37 s	90.6 MB	40.0
xlsxrb (In-Memory)	In-Memory	5.75 s	5.94 s	250.9 MB	55.0
creek 2.6.3	Streaming	7.90 s	7.93 s	835.7 MB	481.0
roo 3.0.0	Streaming	10.34 s	10.28 s	139.0 MB	107.0
xsv 1.4.1	Streaming	16.39 s	17.28 s	75.4 MB	2215.0
rubyXL 3.4.38	In-Memory	35.45 s	35.38 s	2281.3 MB	146.0

Running the Benchmarks Locally (Reproducibility)

The benchmark suite leverages bundler/inline to automatically manage and download all peer ecosystem gems without modifying the project’s core Gemfile or requiring manual global gem install steps. Each library is executed in an isolated subprocess (Bundler.with_unbundled_env) across multiple runs with standard business dataset rows (integers, strings, floats, booleans, dates) to ensure clean memory and GC measurements without cross-contamination.

To run the complete benchmark suite:

ruby benchmark.rb 100000 10

Security (Protection against CSV/Excel Injection)

Unlike CSV files which lack type definitions and force Excel to guess types (often inadvertently executing strings starting with =), .xlsx files generated by xlsxrb are strictly typed.

When you pass a Ruby String to xlsxrb, it explicitly writes it as a String (t="s") into the OOXML file. Therefore, even if a string starts with =, Excel will never evaluate it as a formula. To write a formula, you must explicitly use Xlsxrb::Elements::Formula.new. This design completely mitigates CSV/Formula Injection vulnerabilities by default without requiring additional sanitization.

External Link Updates (`update_links`)

As an extra layer of “defense in depth”, xlsxrb configures the workbook to never automatically update external links when opened (updateLinks="never"). This is intentionally set to never by default to prevent Excel from silently reaching out to external resources or executing DDE (Dynamic Data Exchange) links, which is a known vector for malware.

If you absolutely need external links to update automatically, you can explicitly override this (though it is highly discouraged due to security risks):

Xlsxrb.generate("file.xlsx") do |wb|
  # WARNING: Enabling this can expose users to malicious external reference vulnerabilities!
  wb.workbook_property(:update_links, "always")
  # ...
end

Testing & Quality Assurance

To support reliability, compliance with the ECMA-376 specification, and consistent updates, xlsxrb is backed by a highly rigorous, enterprise-grade Quality Assurance (QA) and testing architecture.

Multi-Tier Testing Strategy

Round-Trip Testing: Unit tests verify that every generated sheet can be reliably parsed back by the reader with identical content and styling.
Contract Consistency: Ensures semantic output consistency between the Streaming (Xlsxrb.generate) and In-Memory (Xlsxrb.build) APIs.
Property-Based Testing (PBT): Automatically generates random data to catch edge cases (e.g., huge numbers, special characters) preventing unexpected crashes.
Concurrency Validation: Thread and Ractor safety checks to guarantee no global variable pollution during parallel execution.
Security & DoS Protection: Hardened against malicious files, including memory exhaustion (ZIP Bombs) and infinite parsing loops.

Strict Interoperability & Rendering

Official Open XML SDK Validation (E2E): Every generated spreadsheet is structurally validated against the official Microsoft Open XML SDK to prevent file corruption warnings in Microsoft Excel.
Visual Regression Testing (VRT): Spreadsheets are rendered via a headless LibreOffice Calc engine and compared pixel-by-pixel against visual baselines to catch subtle rendering regressions.

Performance & Types

Continuous Benchmarking: Memory usage and processing speeds are profiled in CI on large datasets to prevent performance regressions and OOM leaks.
Runtime Type Validation: Strong dynamic typing using RBS::Test to ensure the library’s types are perfectly sound at runtime.

For a comprehensive breakdown of our QA matrix, see docs/QUALITY_ASSURANCE.md. For details on running tests locally, see docs/DEVELOPMENT.md.

Development

We welcome contributions! The project is configured with a ready-to-use Dev Container to streamline local environment setup.

For contribution guidelines, E2E testing policies, and the step-by-step development workflow (including how to run the Dev Container from your terminal), please refer to docs/DEVELOPMENT.md.

To install this gem onto your local machine, run bundle exec rake install. To release a new version, update the version number in version.rb, and then run bundle exec rake release, which will create a git tag for the version, push git commits and the created tag, and push the .gem file to rubygems.org.
